Equipment parameters

• The machine size：L 2400 × W 3600 × H 2900（mm）
• Install range ：L 10000 × W 3700 × H 3100（mm）
• Scope of application：L 10000 × W 3700 × H 3100（mm）
• Installation requirements ：Horizontal error <10mm; Parallelism error <10mm
• Wash the car time ：General washing 1 reciprocating 3 minutes 20 seconds, fine washing 3 reciprocating 7 minutes 10 seconds
• Water requirements：Pipe diameter DN25 Flow ≥80L/min
• Power supply requirements ：Voltage AC380V 50Hz capacity 15KVA
• Air supply requirements ：Pressure is 0.75 ~ 0.9 Mpa
• Water consumption ：L - 95 l / 72
• Amount of consumables：Foam 7ml/ set water wax 12ml/ set

• Device video

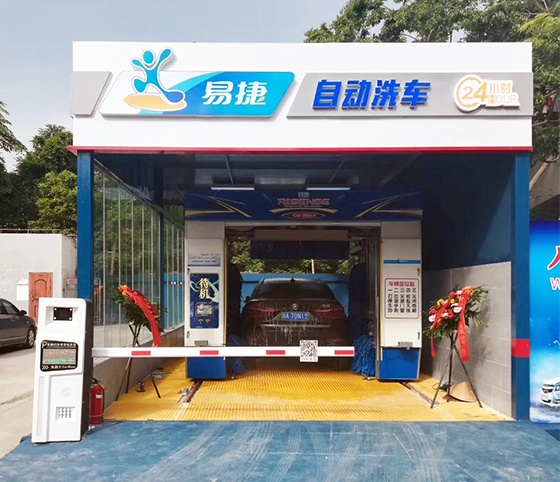

• Installation case

Equipment advantages

• Advantage 1: excellent design

  Automatic MCU computer control system, faster operation speed,

  lower failure rate, remote upgrade.

  Using ZFC alloy non - welding bending frame.

  5 brushes (1 vertical lift top brush +2 small vertical brushes

  +2 large vertical brushes).

  Cross - wind and head - wind imitation drying system,

  powerful 4 fans. Automatic foam siphon system.

  Automatic water and wax siphon system.

  It can be equipped with Japanese sen or third-party self-service

  system to realize unattended intelligent car washing.

• Advantage 2: bright spot is much

  Automatic cleaning, good effect.

  Low cost and strong economy.

  Two-key car wash, easy to operate.

  Liquid siphon ratio, easy to use.

  Profile blowing, blow drying effect is good.

  Energy saving, water saving.

  With fault identification code, fault identification, easy to eliminate.
